Overview of oil seal: What is oil seal and its importance
Oil seal, also known as rotary shaft seal or radial shaft seal, is a key sealing element in mechanical equipment to prevent lubricating oil leakage and block the entry of external pollutants. As an important part of the mechanical sealing system, the oil seal forms an effective seal between the rotating shaft and the stationary housing through its unique structural design to ensure the normal operation of various mechanical equipment.
In modern industry, although the oil seal is small, it plays an irreplaceable role. A high-quality oil seal can:
– Significantly extend the service life of the equipment
– Reduce lubricant consumption
– Reduce maintenance costs
– Improve equipment operation efficiency
– Prevent environmental pollution
According to statistics, about 30% of mechanical equipment failures are related to seal failure, and oil seals are the most commonly used dynamic sealing form, and their performance directly affects the reliability of the entire mechanical system. Understanding the working principle of oil seals, correctly selecting and maintaining oil seals are crucial for equipment managers and maintenance technicians.

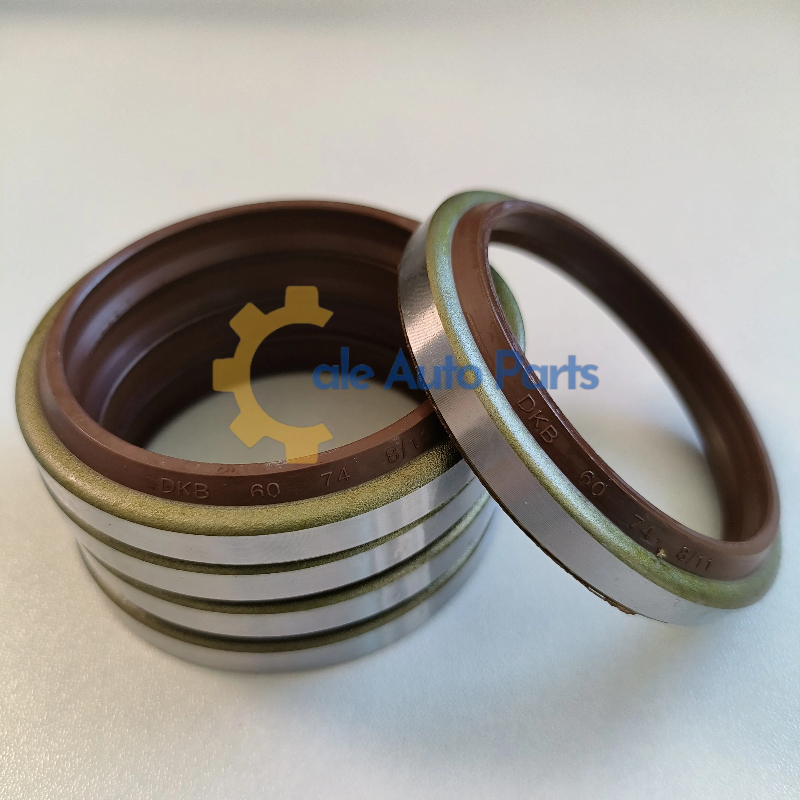

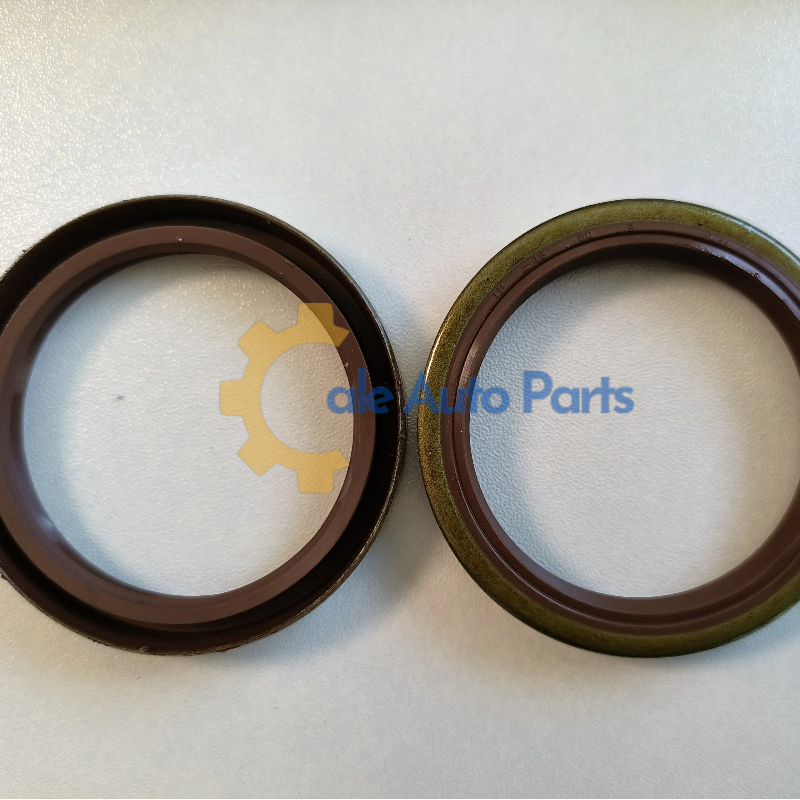

Typical structural composition of oil seals
A standard oil seal usually contains the following three main parts:
1. Metal skeleton:
– Material: usually low carbon steel or stainless steel
– Function: provide structural support to ensure that the oil seal maintains stable shape during installation and use
– Type: full rubber coating (metal not exposed) or half rubber coating (partial metal exposed)
2. Elastic sealing lip:
– Material: nitrile rubber (NBR), fluororubber (FKM), silicone rubber (VMQ), etc.
– Key parts: main lip (contact with shaft), auxiliary lip (dust-proof function), spring groove
– Design features: lip angle, contact width, oil return line texture, etc. affect sealing performance
3. Self-tightening spring:
– Material: stainless steel or galvanized steel
– Function: compensate for the elastic force loss caused by rubber aging or wear, and maintain constant contact pressure
– Type: spiral spring, hoop spring, etc.

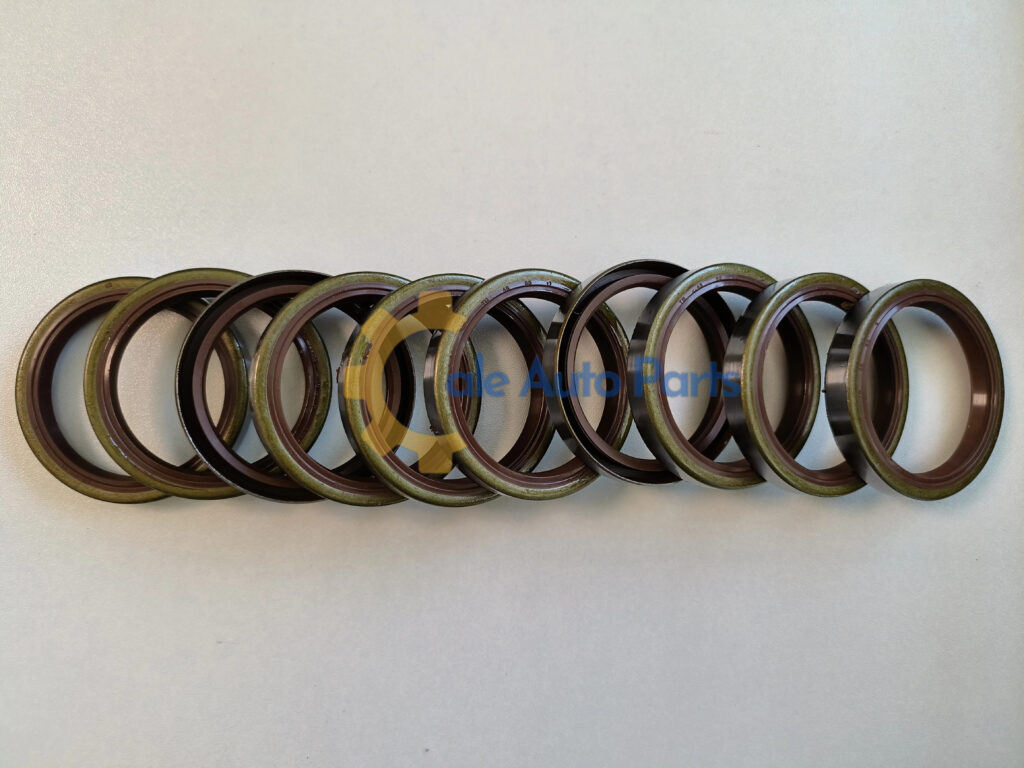

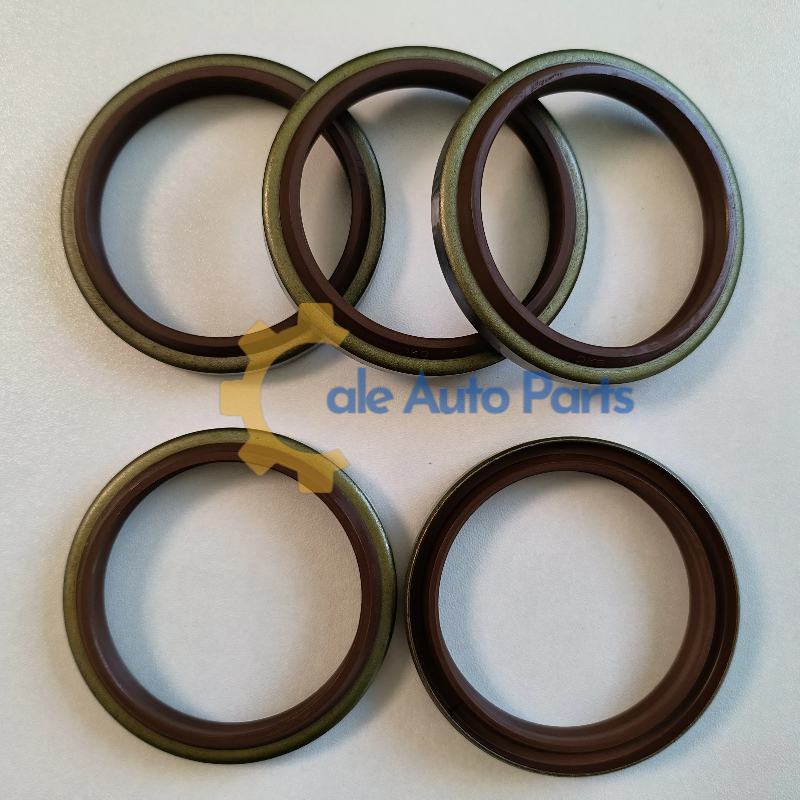

Main types and characteristics of oil seals
Classification by structure
1. Standard oil seal (TC type):
– The most common single lip structure
– Only has basic sealing function
– Suitable for general working conditions
2. Double lip oil seal (2TC type):
– Add dustproof auxiliary lip
– Effectively block external dust and moisture
– Suitable for dusty and humid environments
3. Spring oil seal with auxiliary lip:
– Both the main and auxiliary lips are equipped with springs
– Enhanced sealing reliability
– Used in high pressure or high speed occasions
4. Fluid dynamic oil seal:
– Special lip pattern design
– Significantly improve pump return effect
– Suitable for extremely high speed or low viscosity media
Maintenance and replacement guide
1. Daily inspection items:
– Signs of leakage (oil seepage, oil dripping)
– Abnormal noise or temperature rise
– External pollution accumulation
2. Regular maintenance measures:
– Clean external deposits
– Check the spring status
– Relubrication (if necessary)
3. Judgment of replacement timing:
– Continuous leakage cannot be controlled
– Lip is obviously worn or hardened
– Preventive replacement during equipment overhaul
4. Replacement precautions:
– Analyze the cause of failure (avoid repeated failures)
– Check the shaft wear (repair or replace if necessary)
– Choose equivalent or better substitutes
Common problems and solutions for oil seals
Analysis of typical failure modes
1. Lip wear:
– Phenomenon: The lip material is significantly thinned
– Cause: High shaft roughness and poor lubrication
– Countermeasures: Improve the shaft surface quality and ensure adequate lubrication
2. Rubber aging:
– Phenomenon: Hardening and cracking of materials
– Cause: Excessive temperature and incompatible media
– Countermeasures: Choose materials with higher temperature resistance
3. Spring failure:
– Phenomenon: Spring breakage or relaxation
– Cause: Corrosion, fatigue
– Countermeasures: Use stainless steel springs
4. Installation damage:
– Phenomenon: Local tearing or deformation
– Cause: Improper installation tools
– Countermeasures: Use professional installation tools
Diagnosis process of leakage problems
1. Confirm the leakage characteristics:
– Continuous dripping or intermittent leakage
– Leakage amount
– Leakage location (lip, outer diameter)
2. Check the system status:
– Is the oil pressure abnormal?
Is the oil temperature exceeding the standard?
– Is the oil suitable?
3. Check the oil seal condition:
– Lip wear shape
– Rubber elasticity retention
– Is the spring position correct?
4. Check the mating parts:
– Shaft surface roughness
– Shaft radial runout
– Cavity roundness
Oil seal purchasing guide
1. Material authenticity:
– Original material certification
– Batch consistency
– Physical property test report
2. Manufacturing accuracy:
– Dimension tolerance control
– No burrs or flash
– Uniform rubber coating
3. Performance verification:
– Bench test data
– Service life evaluation
– Working condition adaptability
Oil seal FAQ
Q1: What is the difference between oil seals and mechanical seals?
A: Oil seals are contact-type radial shaft seals with simple structure and low cost, suitable for medium and low speed applications; mechanical seals are end face sealing systems, which are more complex and expensive, but suitable for high pressure, high speed and hazardous media.
Q2: How to determine whether the oil seal needs to be replaced?
A: Replacement should be considered in the following situations: 1) Continuous visible oil leakage; 2) Abnormal noise during equipment operation; 3) Significant increase in lubricant consumption; 4) Reaching the recommended replacement cycle based on the number of operating hours.
Q3: Which direction should the oil seal face when installed?
A: Oil seals are divided into “air side” and “oil side”. Usually the spring side faces the sealed medium (oil side), and the dust lip (if any) faces the outside. Please refer to the product logo or manual for details.
Q4: Why does the newly installed oil seal leak?
A: Possible reasons include: 1) Wrong installation direction; 2) Shaft surface damage; 3) Damage to the lip during installation; 4) Shaft diameter size does not match; 5) Insufficient lubrication leads to initial dry friction.
Q5: What is the typical service life of an oil seal?
A: It depends on the working conditions. The service life of an oil seal for general industrial equipment is 2000-8000 working hours. High temperature, high speed, and polluted environment will significantly shorten the service life, while under ideal conditions it can reach tens of thousands of hours.
Q6: Can the removed oil seal be reused?
A: It is not recommended. The disassembly process usually causes invisible damage, and it is difficult to ensure the sealing performance when reinstalling. The oil seal is a one-time use component and should be replaced with a new one during maintenance.
Q7: How to store spare oil seals?
A: It should: 1) avoid direct sunlight; 2) temperature 5-25℃; 3) relative humidity <70%; 4) away from ozone sources; 5) store in the original packaging; 6) avoid stacking and deformation. The general shelf life of rubber parts is 3-5 years.
